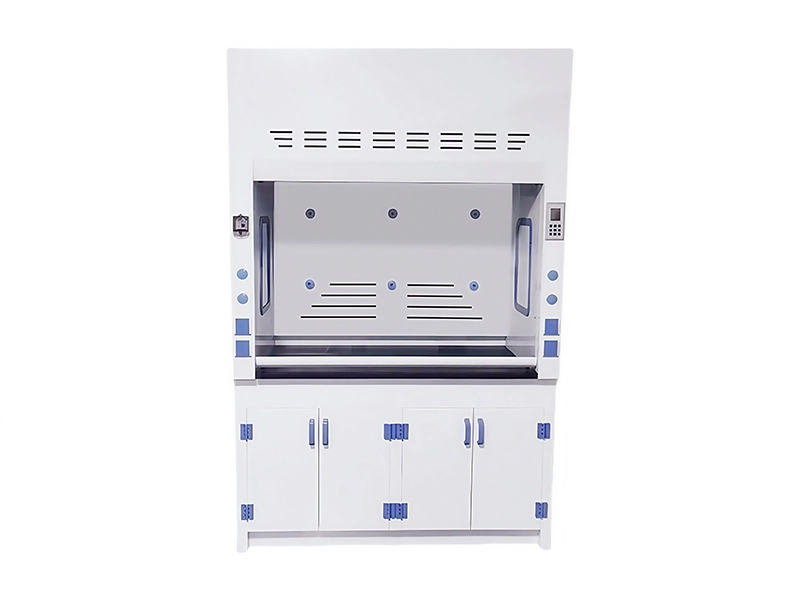

Laboratory furniture fume hood for sale
Laboratory fume hoods are equipment used for exhaust ventilation in laboratories. They are mainly used for exhaust and ventilation. In chemical laboratories, they can remove various harmful gases, odors, moisture, and flammable, explosive, and corrosive substances generated during experimental operations, protect the safety of users, and prevent pollutants in the experiment from spreading to the laboratory.
Fume hoods are usually composed of a cabinet, a countertop, a control system, etc. The cabinet is equipped with exhaust fans and filters, and the countertop is equipped with operating ports and windows. The control system is responsible for controlling the operation of the fume hood.
PART. 1
● Control panel: LCD control panel is used, with power, switch, lighting, fan and operation indicator buttons. The LCD screen can clearly display the operation status of the fume hood.
PART. 2
● Power socket: The fume hood is equipped with four 220V single and multi-functional sockets.
PART.3
● Guide plate: Made of PP plate welding, it consists of at least three plates, so that an air chamber is formed between the working space and the connection of the exhaust pipe to discharge the polluted gas evenly.
PART.4
● Window glass: It is strong, has good bending resistance, and will not produce small sharp-angled fragments when it breaks.
PART.5
● All internal connections must be concealed with no exposed screws.
Product Specification
|
Name |
All steel fume hood |
Stainless steel fume hood |
PP fume hood |
|
Shell |
High-quality cold-rolled steel plates with a thickness of 1.0-1.2mm are electrolytically degreased and phosphated, and then electrostatically sprayed with a layer of epoxy resin powder with excellent corrosion resistance; |
High-quality cold-rolled steel plates with a thickness of 1.0-1.2mm are electrolytically degreased and phosphated, and then electrostatically sprayed with a layer of epoxy resin powder with excellent corrosion resistance; |
High-quality cold-rolled steel plates with a thickness of 1.0-1.2mm are electrolytically degreased and phosphated, and then electrostatically sprayed with a layer of epoxy resin powder with excellent corrosion resistance; |
|
Lining |
It is 5mm thick anti-fold special board; |
It is 5mm thick anti-fold special board; |
It is 5mm thick anti-fold special board; |
|
desk panel |
It uses corrosion-resistant solid physical and chemical board with a thickness of 12.7MM, and is equipped with gates on all sides to prevent liquid spillage. |
It uses corrosion-resistant solid physical and chemical board with a thickness of 12.7MM, and is equipped with gates on all sides to prevent liquid spillage. |
It uses corrosion-resistant solid physical and chemical board with a thickness of 12.7MM, and is equipped with gates on all sides to prevent liquid spillage. |
|
window |
Thick 6mm tempered glass; |
Thick 6mm tempered glass; |
Thick 6mm tempered glass; |
|
window handle |
Thickness 2.0mm epoxy type |
Thickness 2.0mm epoxy type |
Thickness 2.0mm epoxy type |
|
lighting |
30W fluorescent lamp set, lighting no less than 300LUX; |
30W fluorescent lamp set, lighting no less than 300LUX; |
30W fluorescent lamp set, lighting no less than 300LUX; |
|
socket |
Equipped with 2 (220V/10A/16A sockets); |
Equipped with 2 (220V/10A/16A sockets); |
Equipped with 2 (220V/10A/16A sockets); |
