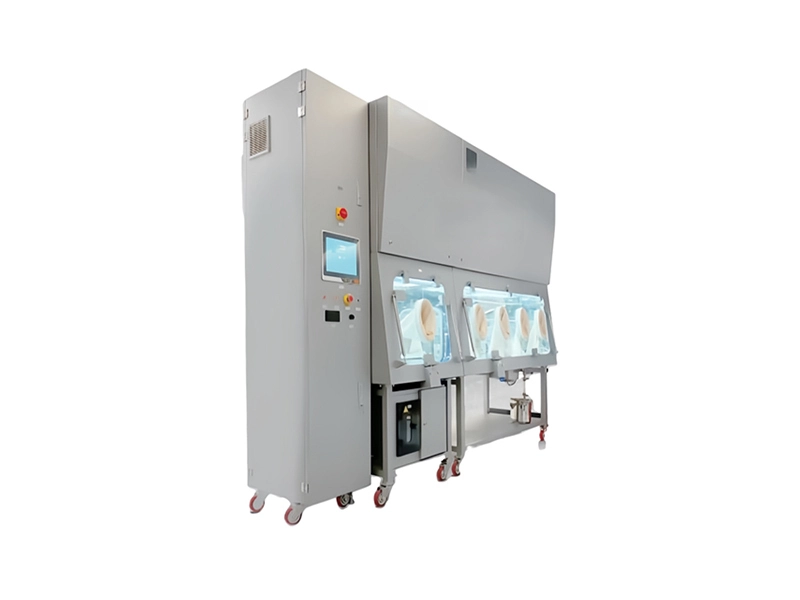

Sterile Isolators for Laboratory Sterile Environment
It is used for the production, filling, and packaging of sterile drugs, as well as the weighing and subpackaging of highly active and toxic drugs. It is used in scientific research experiments such as microbiology, cell biology, and genetic engineering to provide protection for aseptic operations.
The highest level of sterility assurance
● Compared to traditional clean rooms, isolators provide stricter microbial control and reduce the risk of product contamination.
Reduced reliance on cleanrooms
● Can operate in lower cleanroom environments (such as Class C or Class D backgrounds) to reduce energy consumption of air conditioning systems.
Operator protection
● Negative pressure isolators allow safe handling of highly toxic or infectious materials.
Automation and Compliance
● Integrated PLC control and data logging functions.
Reduce human intervention and reduce the risk of deviation.
Product feature
● The inner cavity adopts laminar (turbulent) air supply, and the air flow shape is specially designed to ensure the purification level;
● Real-time monitoring of the inner cavity pressure, temperature, and wind speed, and automatic control and adjustment;
● The LOG sterilization program can be integrated, and the killing rate of microorganisms can reach 6 logarithmic levels (Log 6) or more;
● The airtightness level of the isolator is strictly tested in accordance with the IS014644-2 standard;
● Waste can be quickly transferred out of the working area immediately through RTP and aβ valves to ensure the cleanliness of the internal environment of the isolator (optional);
● PLC control, touch screen operation, key operation interlock control, effectively prevent misoperation;
● Real-time monitoring of key parameters, storage of data, and convenient export and printing of charts;
● Dust particle online detection system, floating bacteria online sampling system and peroxide concentration online detection system can be integrated as needed;
● Can be equipped with online glove leak detector;
● This product can be customized according to customer needs.
Product Specification
|
Product model |
TKSAGE-ISO2050(S2) |
TKSAGE-ISO2450(S3) |
TKSAGE-ISO3150(S4) |
TKSAGE-ISO3150(W8) |
|
Overall dimensions |
2050-850*2480 |
2450-850-2480 |
3150-850*2480 |
3150-1100*2480 |
|
Glove station |
2 gloves |
3 gloves |
4 gloves |
8 gloves |
|
airflow organization |
laminar flow |
|||
|
Cabin tightness |
It complies with ISO10648-2 standard requirements and meets EU and FDA regulatory requirements. |
|||
|
door system |
interlocking system |
|||
|
filter |
G4 primary filter + H14 high efficiency filter |
|||
|
control system |
PLC intelligent control system (industrial PC, Siemens S7-1200PLC, three-level authority, electronic signature, audit trail) |
|||
|
Intelligent monitoring |
Isolator cavity pressure difference/high efficiency filter pressure difference/air outlet wind speed/hourly port leakage rate/gas concentration/temperature and humidity |
|||
|
Pressure detection |
±80Pa |
|||
|
System integration |
Temperature and humidity/wind speed/hydrogen peroxide concentration/online monitoring of particles, floating bacteria, etc. |
|||
|
Leak rate per hour |
<0.5% Vol/hr |
|||
|
Power requirements |
220V/5KW |
|||
