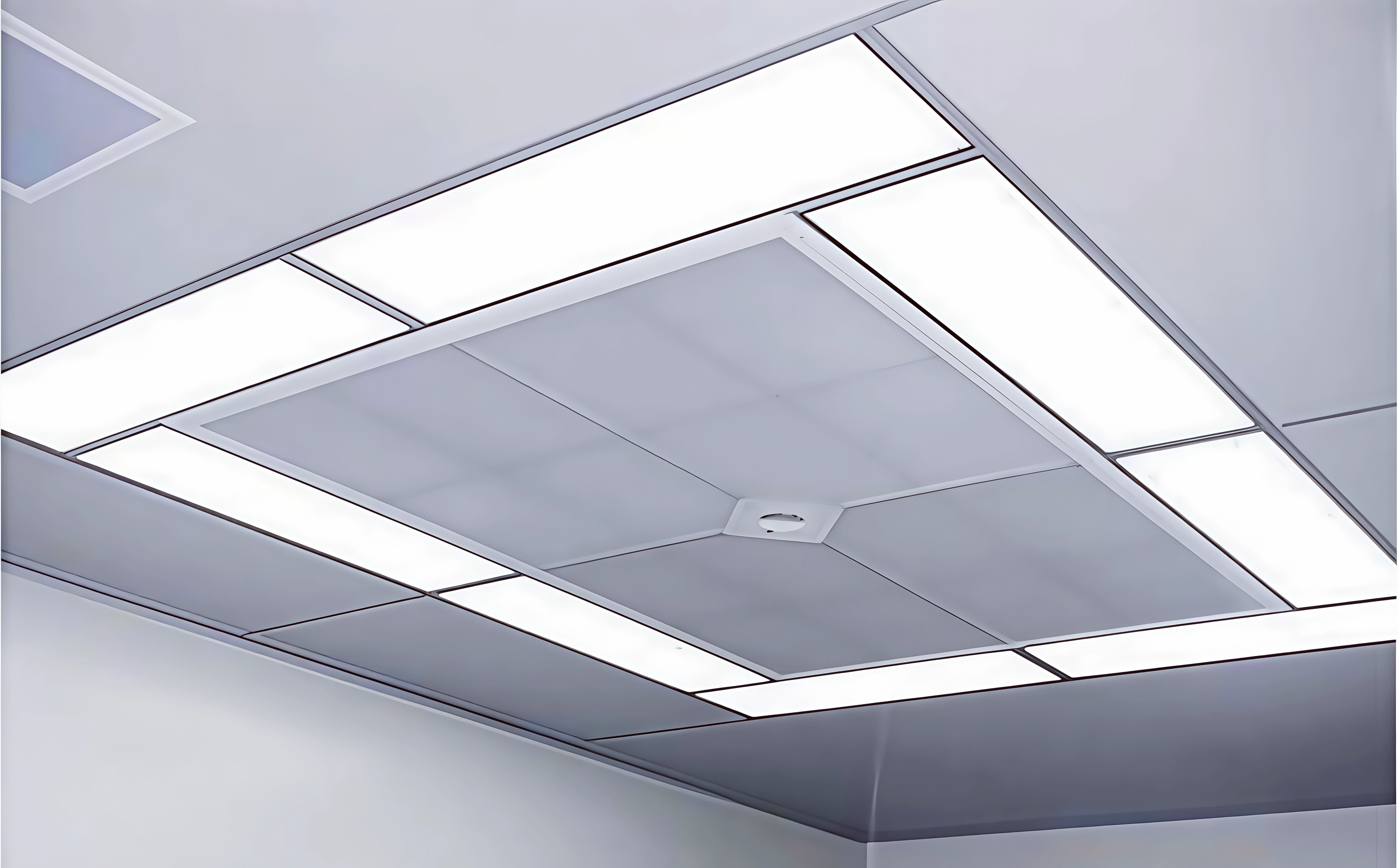

class10000 Laminar Flow Ceiling for OT Room
| Product specification | 2600*1400*500 |
| Grade | class10000 |
| Description | The box body is 1.2mm thick electrolytic steel plate with baking paint, and the frame is aluminum profile |
| Description | With DPP flow equalization membrane |
| Description | Contains partition high efficiency filter H14 99.99%, 4 pieces |
Product Advantages
●Definition and Principle: Laminar flow ceiling systems are ventilation and purification systems that deliver filtered and purified clean air into the indoor space in a uniform laminar flow manner from the ceiling. Based on laminar flow technology, it uses high-efficiency particulate air (HEPA) filters to purify the incoming air, allowing the clean air to be evenly delivered downwards from the ceiling in a laminar flow pattern. This air flows through the working area at a constant speed and in a parallel manner, rapidly expelling indoor dust and pollutants, thus maintaining a highly clean indoor air environment.
●Structural Composition: Primarily composed of a plenum chamber, HEPA filters, and air supply panels. The plenum chamber stabilizes air pressure and ensures uniform airflow; the HEPA filters effectively filter dust, bacteria, and other fine particles from the air; and the air supply panels deliver the treated air at a uniform speed and direction.
●Features: Features highly efficient purification, employing HEPA filters to effectively filter bacteria, viruses, dust, and other harmful substances from the air. Simultaneously, the ceiling-mounted air supply system evenly distributes clean air to all corners of the room, avoiding any dead zones. In addition, they are typically equipped with an intelligent control system that automatically adjusts operation based on factors such as the number of people in the room, temperature, and humidity. They also feature a low-noise design, making operation virtually silent.
●Applications: Widely used in hospital clean operating rooms, clean wards, clean animal facilities, and other projects. They can also be used in sterile laboratories, electronic chip manufacturing workshops, and other places with strict requirements for air cleanliness.
