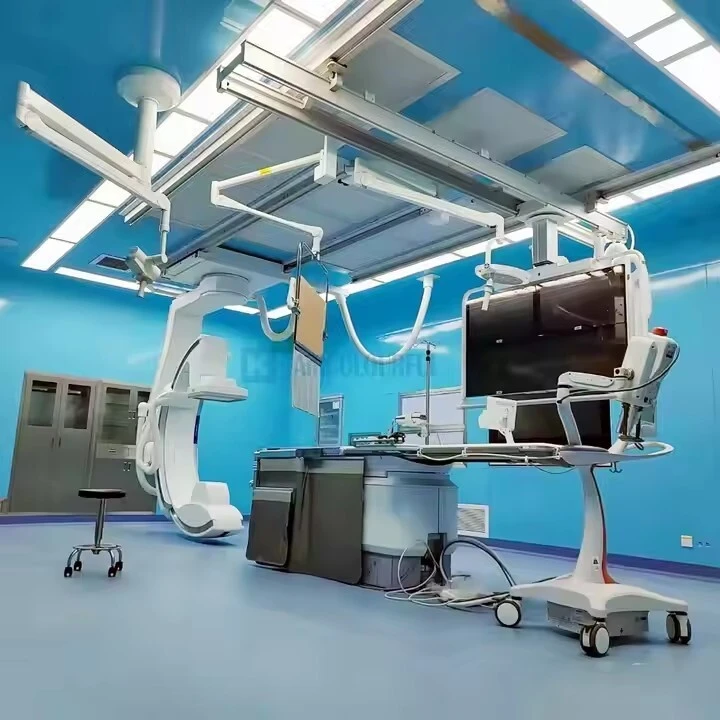

Class 1000 clean operating room

Key Technological Highlights

1. High-Efficiency Laminar Flow Airflow Design

Utilizing a localized centralized air supply + top-supply, bottom-return airflow organization, the surgical area is equipped with a high-efficiency filtered air supply ceiling. Clean airflow precisely covers the surgical field, while airflow returns in an orderly manner to non-surgical areas, ensuring sterility in the core area while reducing system energy consumption.

2. Precise Environmental Control Capabilities

Temperature Control: 22℃-25℃, Humidity 40%-60%, adaptable to the environmental requirements of long-term surgeries.

Pressure Differential Control: Maintains a positive pressure of +5Pa~+8Pa relative to adjacent areas, preventing external contaminants from seeping in.

Air Change Rate: ≥30 times/hour, meeting the air cleanliness and renewal requirements of routine surgeries.

3. Modular Airtight Enclosure System

Using medical-grade antibacterial cleanroom wall panels, seamless spliced ​​flooring, and electrically operated airtight doors, coupled with sealed pipe interfaces, installation is convenient and airtight, effectively reducing dust accumulation and bacterial growth, and lowering the difficulty of later maintenance.

4. Flexible expansion and compatibility: It has reserved interfaces for surgical equipment such as C-arms and endoscopes, supports seamless integration with hospital central monitoring systems and medical gas systems, and can upgrade digital teaching functions according to departmental needs.

Core configuration list:

Localized high-efficiency filtration air supply ceiling; Intelligent laminar flow purification unit + exhaust system; Modular airtight enclosure components (wall panels / floor / doors); Real-time environmental parameter monitoring and alarm system; Surgical-grade medical pendant + anti-glare LED shadowless lamp.
