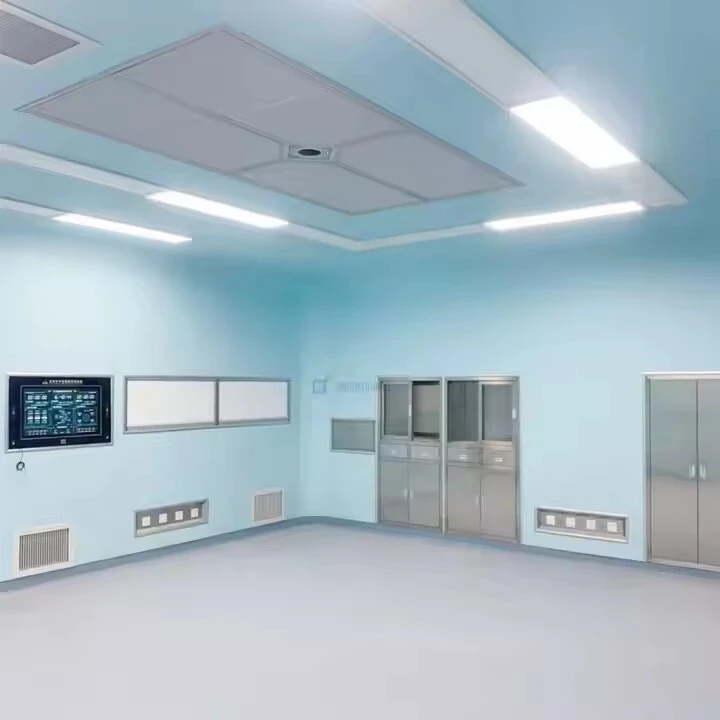

Class 10,000 clean operating room

Key Technological Highlights

1. Energy-Saving Airflow Design: Utilizing a top-supply, bottom-return turbulent airflow cleanroom mode, coupled with high-efficiency filter air supply, it eliminates the need for a full-coverage air supply ceiling. While ensuring cleanliness in the surgical area, it significantly reduces equipment energy consumption and initial investment; air exchange rate ≥15 times/hour, meeting the air purification needs of routine minimally invasive and outpatient surgeries.

2. Lightweight Modular Assembly: Prefabricated wall panels, floors, airtight doors, and other components allow for rapid installation within 7-15 days, eliminating the need for large-scale infrastructure modifications and adapting to the compact spaces of clinics and outpatient buildings; the modular structure supports future expansion and upgrades as needed, flexibly responding to business growth.

3. Simple and Intelligent Environmental Management:

Temperature Control: 22℃-26℃, Humidity 40%-65%, meeting short-term surgical environment comfort requirements.

Pressure Differential Control: Maintains a positive pressure of +3Pa~+5Pa relative to adjacent areas, preventing the infiltration of external contaminated air.

Equipped with a simple monitoring panel, it displays real-time temperature, humidity, and pressure differential data, with audible and visual alarms for abnormal situations, facilitating convenient operation and maintenance.

4. Highly adaptable to specific medical devices: It has reserved interfaces for small medical devices, which can be flexibly matched with medical aesthetic endoscopes, dental implant machines and other specialized instruments; the layout is compact and reasonable, making the most of limited space and suitable for multiple consecutive outpatient surgeries.

Core configuration list:

Zoned high-efficiency filtration air supply system; Energy-saving cleanroom air conditioning unit + exhaust module; Lightweight modular airtight enclosure components (wall panels / floor / electric airtight doors); Simple environmental parameter monitoring and alarm system; Outpatient-specific small medical pendant tower + LED surgical shadowless lamp.
