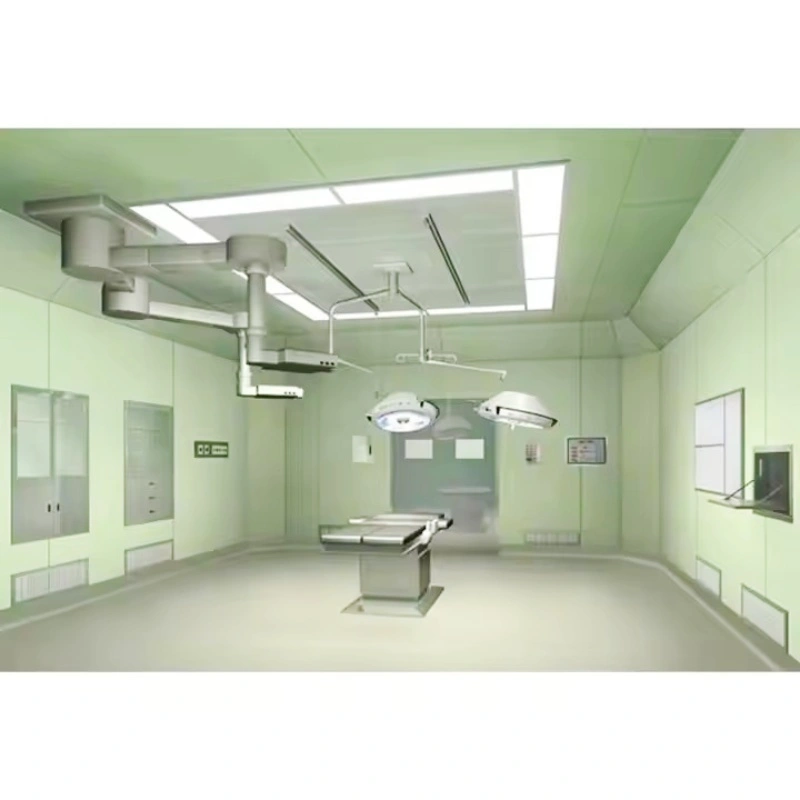

Class 100 clean operating room

Key Technological Highlights

1. Top-Loading Airflow + Full-Coverage High-Efficiency Filtration

Utilizing vertical laminar airflow organization, the ceiling is fully covered with H14-grade high-efficiency filters. Clean airflow uniformly and vertically covers the surgical area, forming a "sterile air barrier" to prevent contaminants from settling on the surgical wound.

2. Precise Environmental Parameter Control

Temperature Control: 22℃-25℃, Humidity 40%-60%, avoiding sweating of medical staff and fluctuations in patient body temperature.

Pressure Differential Control: Maintaining a positive pressure of +8Pa~+10Pa relative to adjacent areas to prevent the infiltration of external contaminated air.

Air Change Rate: ≥60 times/h, far exceeding lower-level operating rooms, ensuring continuous air cleanliness.

3. Fully Airtight Enclosure Structure

Equipped with seamless welded medical cleanroom wall panels, antibacterial and non-slip flooring, and electrically operated airtight doors, along with sealed pipe interfaces and anti-backflow floor drains, eliminating dust accumulation and bacterial growth in gaps from the source, ensuring stable cleanliness.

4. Intelligent Monitoring and Control: Equipped with a real-time cleanliness monitoring system, it can dynamically display key indicators such as particle count, temperature, humidity, and pressure difference, and automatically alarm in case of abnormalities; it supports one-click start and stop of the purification system, simplifying the operation and maintenance process.

Core supporting components:

Full-coverage H14 high-efficiency filter ceiling; Laminar flow purification unit + independent exhaust system; Airtight cleanroom wall panels/flooring/electric airtight doors; Intelligent environmental monitoring and control system; Anti-glare LED surgical shadowless lamp + high-precision medical pendant system.
