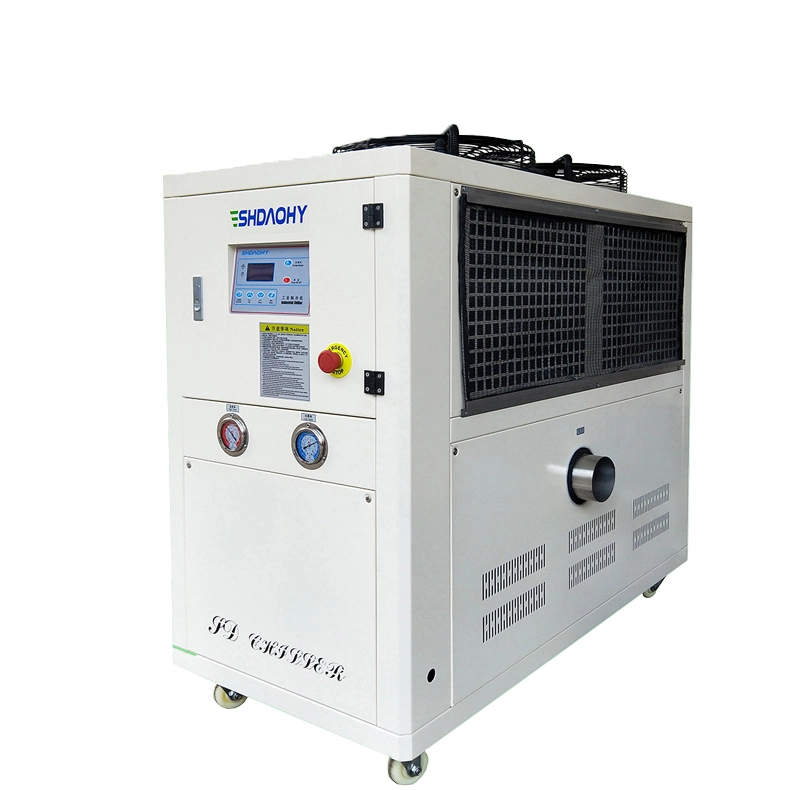

Air-cooled chillers for operating room 1

Air-cooled chillers for operating room 2

Air-cooled chillers for operating room 3

Air-cooled chillers for operating room 4

Air-cooled chillers for operating room

Air-cooled chillers are industrial refrigeration equipment that uses air as the cooling medium. They achieve rapid cooling and precise temperature control through the principle of heat exchange and are widely used in electronics, electroplating, food, machinery, chemical, medical and other fields.

Delivery time:

Moq:

Inquiry

Write a Review

Product feature

Air-cooled chillers achieve cooling through a vapor compression refrigeration cycle, primarily comprising three interconnected systems:

● Refrigerant Circulation System: Liquid refrigerant absorbs heat and evaporates in the evaporator, forming gaseous refrigerant. This gaseous refrigerant is compressed by the compressor to a high-temperature, high-pressure state, then enters the condenser where a fan dissipates heat into the air, causing it to condense back into liquid refrigerant. The liquid refrigerant then passes through an expansion valve, becoming a low-temperature, low-pressure refrigerant, which enters the evaporator to continue absorbing heat, completing the cycle.

● Water Circulation System: A water pump draws water from the tank and pumps it to the equipment requiring cooling. After removing heat, the water's temperature rises, and it returns to the tank. A float switch in the tank controls the water level and temperature.

● Electrical Control System: This includes the power supply and automatic control components. The power supply provides power to the compressor, fan, and water pump via contactors. The automatic control system includes a thermostat, pressure protection, timer, relays, and overload protection, automatically starting and stopping the system based on water temperature.
