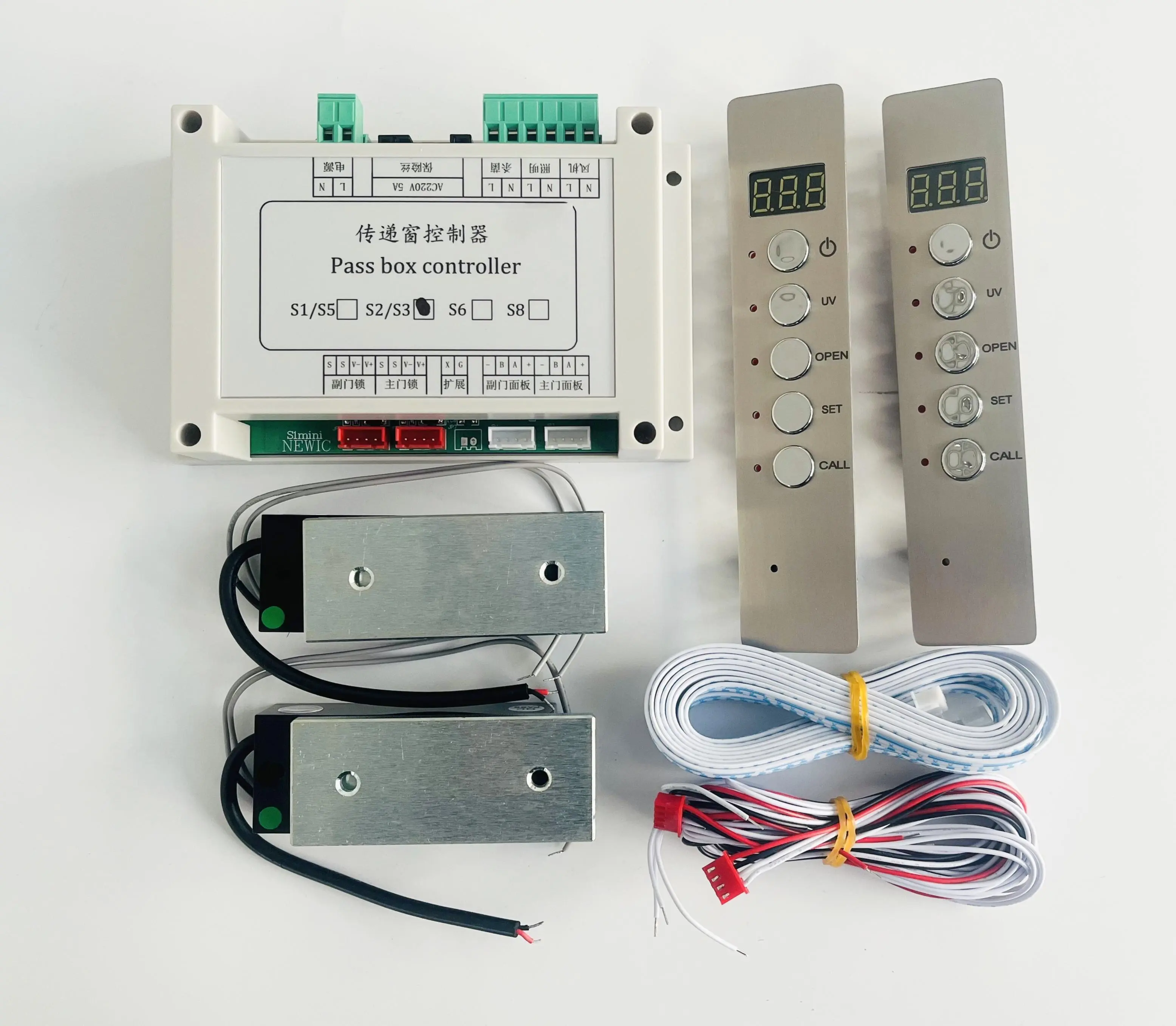

Pass Box Controller：Double-door interlocking + intelligent purification create a "safety lock" for cleanliness delivery.

The pass box controller is the core control component of the pass-through window, responsible for realizing the automated operation, safety interlock, and environmental purification functions of the pass-through window. It is widely used in places with strict cleanliness requirements, such as medical, pharmaceutical, electronic, and food industries.

Delivery time:

Moq:

Inquiry

Write a Review

Model	S2
Voltage	AC220V 50HZ
Lock Voltage	DC12V
Door Magnetic Type	Dry contact signal, electronic interlocking of the pass-through box, door closed

Product Advantages

● Austenitic 304 stainless steel brushed panel, Omron tactile buttons, lifespan up to 100,000 cycles.

● Stainless steel panel lettering is laser engraved, wear-resistant and clear.

● The main control box is constructed with a stretched aluminum alloy shell, providing excellent heat dissipation. Its strong and weak current isolation design ensures safety and reliability.

● The display panel and main control box communicate via an industrial RS485 bus. The pass-through window is electronically interlocked, and the distance can be extended as needed.

● The controller features the following functions: normally open or normally closed type selectable via DIP switch; main and auxiliary door call function; digital tube display countdown; freely settable air shower and sterilization times; and the ability to activate the air shower and sterilization when the main and auxiliary doors are closed via DIP switch.
