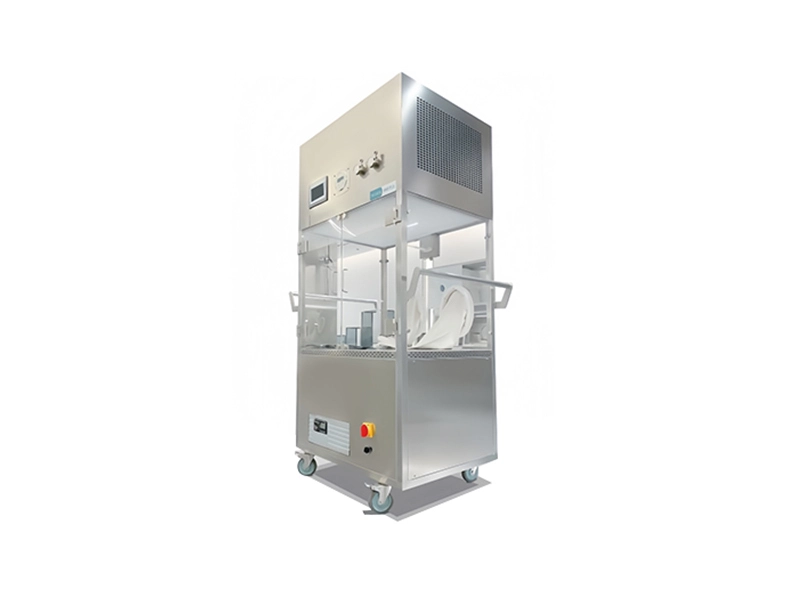

Laminar Flow Transfer Cart ensures dust-free and sterile material transfer
Mobile laminar flow protection
● Vertical/horizontal laminar flow design, built-in HEPA high-efficiency filter, continuous output of clean airflow, maintaining ISO 5 cleanliness in the operating area. One-way laminar flow effectively blocks external particles and microbial contamination, ensuring that sterile materials, precision components or biological samples are in a controlled environment during the entire transportation process.
Flexible and efficient transportation
● Breaking through the limitations of fixed laminar flow equipment, it is equipped with silent universal wheels (with locking brakes) and can freely shuttle between different areas such as laboratories, clean workshops, and operating rooms. Applicable to:
Pharmaceutical industry: cross-workshop transportation of sterile raw materials and filled semi-finished products
Medical scenarios: safe delivery of surgical instruments and transplanted organs
Biological laboratories: mobile protection of sensitive samples such as cell cultures and vaccines
Electronic manufacturing: dust-proof transportation of chips and optical devices
1. Differential pressure gauge
2. DOP detection port
3. PAO injection port
4. Fan
5. Liquid tank high efficiency filter
6. Glove hole (including gloves)
7. Non-powered roller
8. Battery
9. UPS
10. Charging port
11. Universal caster with brake
12. Primary filter
13. Inlet and outlet
14. Control panel
1. The equipment is equipped with four shockproof universal casters, which can move smoothly in multiple directions
2. Equipped with a high-efficiency filter fan unit (the wind speed can be adjusted between 0.364-0.54m/s);
3. The equipment is installed with transparent plexiglass, with a novel structure and easy to observe
4. It has its own rechargeable DC power supply to realize the wireless function of the trolley;
5. The entire body of the trolley is made of stainless steel 304 (or 316L), with a simple and smooth structure that is easy to clean and disinfect;
6. It is suitable for variable air volume supply system, the wind speed can be adjusted steplessly, and the operation is reliable and energy-saving;
Product Specification
|
Model |
Dimensions (mm) |
Working area size (mm) |
Wind speed (m/s) |
Cleanliness level |
Noise(dB) |
Illuminance(Lux) |
Control method |
Power(KW) |
|
ZKSJ-FYCLS 1200 |
1300x750x1900 |
1200x650x650 |
0.45±20% |
Class A |
65 |
>300 |
LCD screen control |
0.5 |
|
ZKSJ-FYCLS 1300 |
1500x750x1900 |
1400x650x650 |
0.7 |
|||||
|
ZKSJ-FYCLS 1400 |
1800x750x1900 |
1700x650x650 |
0.9 |
