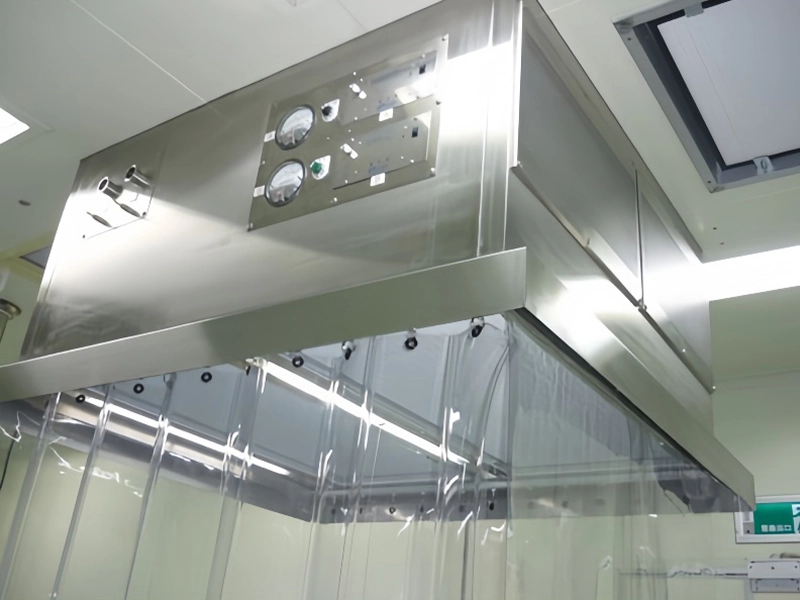

ISO Class 5 Class A Laminar Flow Hood for Local Decontamination
Laminar flow hoods provide local clean environment air purification units that can isolate operators from products to avoid cross contamination and provide ISO 5 (class 100) unidirectional air flow to critical areas.
High cleanliness environment
● HEPA filtration: The laminar flow hood is equipped with a high-efficiency air filter (HEPA, with a filtration efficiency of more than 99.97%) to remove particles ≥0.3μm in the air (such as microorganisms, dust, etc.), ensuring that the operating area reaches ISO level 5.
● Unidirectional laminar airflow: Uniform laminar flow in vertical or horizontal directions (flow rate is usually 0.3-0.5 m/s) can effectively prevent external pollutants from entering and maintain the sterility or dust-free state of the operating area.
Energy-saving and high efficiency
● Adopting advanced energy-saving technology and efficient fan system, the energy consumption of the equipment is reduced while ensuring the purification effect. The intelligent control system can also automatically adjust the wind speed and air volume according to actual needs to avoid energy waste.
Compact structure, flexible installation
● The overall structure is compact, occupies a small area, and has various installation methods, such as ceiling-mounted, wall-mounted, mobile bracket, floor-standing bracket, etc. It can be installed in any combination according to the on-site space, and can be easily installed and arranged in a limited space, shortening the project construction period.
Product Specification
|
Class A Laminar Flow Hood |
W1200*D600*H600 |
1. Material: Made of stainless steel 304#, box body 1.0mm, static pressure box 1.5mm. |
|
W1500*D1000*H600 |
1. Material: Made of stainless steel 304#, box body 1.0mm, static pressure box 1.5mm |
|
|
W2000*D1000*H600 |
1. Material: Made of stainless steel 304#, box body 1.0mm, static pressure box 1.5mm. |
