Clean bench provides a local sterile environment, effectively isolates pollution 1

Clean bench provides a local sterile environment, effectively isolates pollution 2

Clean bench provides a local sterile environment, effectively isolates pollution 3

Clean bench provides a local sterile environment, effectively isolates pollution 4

Clean bench provides a local sterile environment, effectively isolates pollution

Clean bench ensures accurate and safe operation

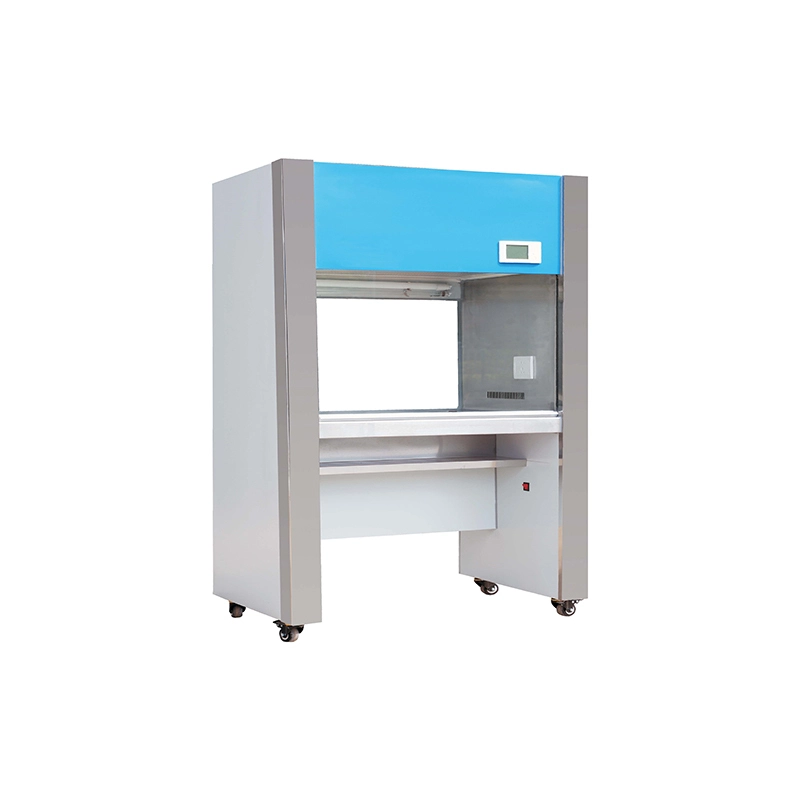

Clean Bench is a professional equipment that provides a local unidirectional laminar clean environment. Its core components include H14-level HEPA filter (filtration efficiency ≥99.99% for particles ≥0.3μm) and low-noise centrifugal fan.

It adopts vertical or horizontal laminar flow design (wind speed 0.3~0.6m/s adjustable) to ensure that the working area meets ISO Class 5 (Class 100) clean standards and effectively prevent cross-contamination of samples.

Inquiry

Write a Review

Product Introduction

The box shell is made of medium-density fiberboard or high-quality cold-rolled steel plate to ensure long-term rust-free. The surface is electrosprayed and the surface is smooth and dust-free.

The worktable is made of seamless 304 stainless steel, and the seamless design avoids dust accumulation. The HEPA high-efficiency filter (filtration efficiency of 0.3μm particles ≥99.99%) ensures air cleanliness, and is equipped with UV ultraviolet germicidal lamps to provide double protection against microbial contamination.

The clean bench provides an ISO 5 (Class 100) clean environment to effectively protect samples from contamination. The vertical or horizontal laminar flow design ensures uniform and stable airflow to avoid cross infection.

The low-noise fan (≤62dB) and energy-saving mode reduce energy consumption and are suitable for long-term work. The humanized design includes adjustable wind speed, LED lighting and intelligent control panel for easy operation.

Clean benches are widely used in biological laboratories (such as cell culture, PCR operations), the pharmaceutical industry (sterile preparation packaging, vaccine research and development) and the electronics industry (chip packaging, optical component assembly).

In the field of food testing, it is used for microbial sample processing; in medical institutions, it ensures a sterile environment for reagent preparation. In addition, it is also suitable for occasions such as scientific research institutes and university teaching that require local clean space. Its flexible models (single/double, desktop/vertical, single-sided/double-sided) can adapt to the needs of different scenarios.

Our advantage

Fireproof and pressure-resistant, the door core is filled with high-strength flame-retardant core material.

High-grade 304 stainless steel handle lock, corrosion-resistant, wear-resistant and long service life.

Adopt high-quality damping 304 stainless steel hinges, which are easy and flexible to open.

Detail presentation

玻璃

侧面

台面

Product parameter

Model	Single-person single-sided clean bench (horizontal air supply)	Single-person single-sided clean bench (vertical air supply)	Double-person single-sided clean bench (horizontal air supply)	Double-person single-sided clean bench (vertical air supply)
Cleanliness level	100 level @ ≥ 0.5 μm (US Federal 209E)
Bacteria colony count	≤ 0.5/dish. hour (φ90mm culture dish)
Average wind speed	0.3m~0.6/m/s (fast and slow dual speed)
Noise	≤ 62dB (A)
Vibration half-peak value	< 0.5um (x.y.z direction)
Illumination	≥ 300LX
Power supply	AC single phase 220V/50Hz
Power consumption	200W	400W	400W	800W
Weight	≤85kg	≤150kg	≤150kg	≤250kg
High efficiency filter specifications and quantity	695x600x50x①	865x558x50x①	1135x600x50x①	1355x558x50x①
Fluorescent lamp/UV lamp specifications and quantity	20Wx①/20Wx①	20Wx①/20Wx①	30Wx①/30Wx①	40Wx①/40Wx①
Applicable number of people	Single person single side	Single person single side	Single person single side	Single person single side
Dimensions	850x580x1600mm	1050x680x1600mm	1300x580x1600mm	1540x680x1600mm
Work area dimensions	700x400x500mm	870x620x520mm	1150x400x500mm	1360x620x520mm

FAQS

What should be paid special attention to when using the ultra-clean workbench?

The workbench should be located in a relatively clean workroom (preferably in a primary cleanroom of 100,000 or 300,000 levels), plug in the power supply, and turn it on according to the function shown on the control panel. Before starting up, the working area and shell of the clean bench should be carefully cleaned to remove the dust on the surface. It can be used normally ten minutes after starting up.

What is the maintenance cycle of the primary filter?

According to the actual situation, the primary filter should be removed and cleaned regularly, and the cleaning cycle is generally 3 to 6 months. (If it is not cleaned for a long time, dust accumulation will lead to insufficient air intake and reduce the cleaning effect).

What is the service life of the high-efficiency filter?

Generally, when the fan working voltage is adjusted to the highest point after eighteen months of use, if the ideal wind speed cannot be achieved, it means that the high-efficiency air filter has too much dust accumulation (the filter holes on the filter material are basically blocked and should be updated in time). Generally, the service life of the high-efficiency air filter is eighteen months.
