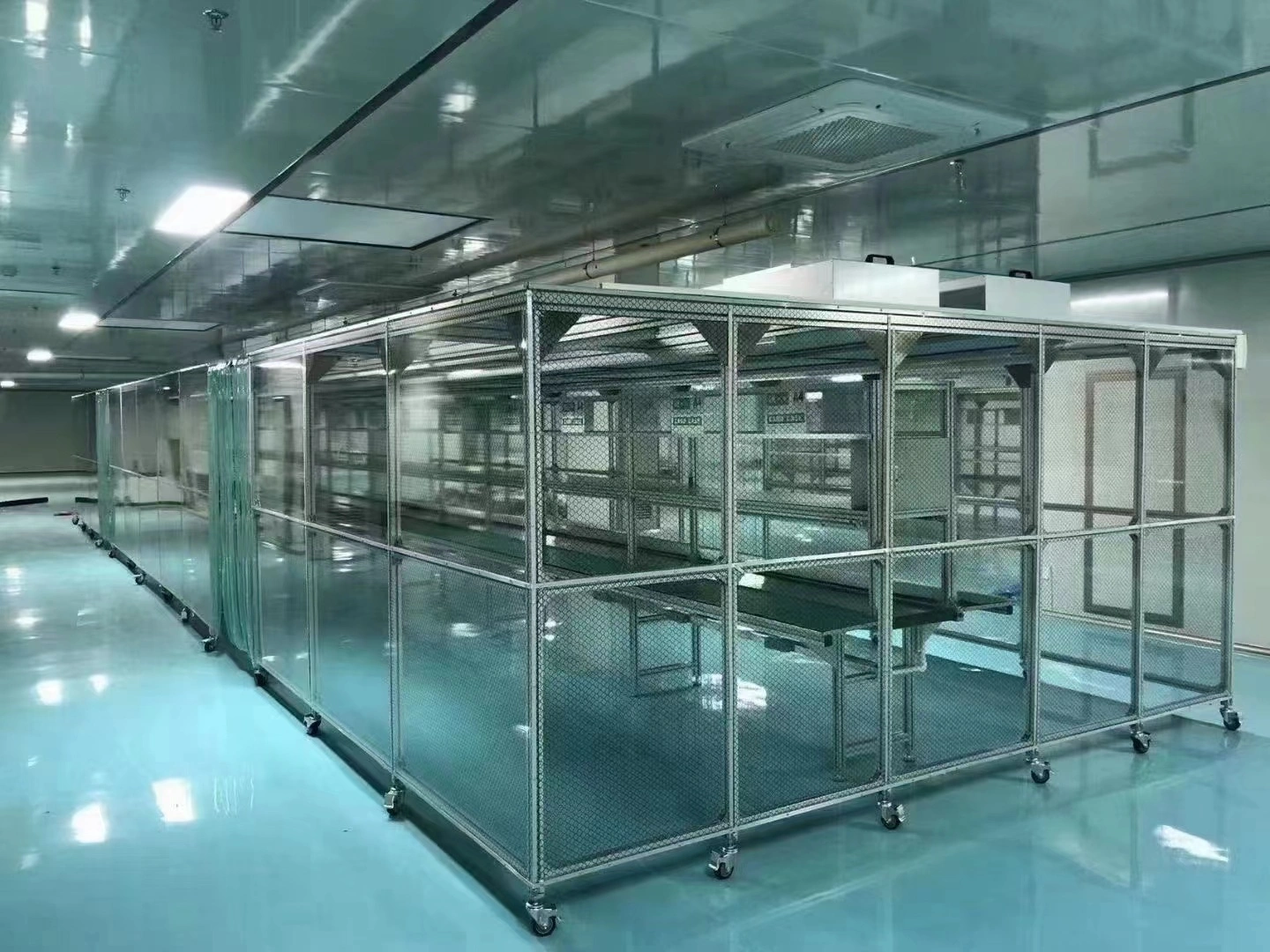

Anti-static Clean Booth for Electronics Industry

Key Selling Points

●Professional anti-static design, comprehensive anti-static protection. The entire area uses static dissipative materials; the surface resistivity of the floor is 2.5×10⁴～1×10⁹Ω, and the grounding resistance is 1×10⁵～1×10⁸Ω. The walls/ceiling are made of conductive color steel plates with an independent grounding network (grounding resistance <4Ω). It comes standard with a pulse-type ion fan (balance voltage ≤±50V), and the surface static voltage is controlled to ≤100V, eliminating electrostatic breakdown and particle adsorption problems at the source. Suitable for electrostatic-sensitive processes involving PCBs and lithium batteries.

●Precise cleanliness control, adaptable to electronic manufacturing standards.

Customizable to ISO7/ISO8 cleanliness levels, equipped with a three-stage filtration system (pre-filter + medium-efficiency filter + high-efficiency filter (HEPA)) achieving a filtration efficiency of ≥99.97% for 0.3μm particles; temperature and humidity can be controlled as needed (standard 22±2℃, humidity 45±5%); low-humidity environment (≤30% RH) can be customized for lithium battery processes to prevent PCB substrate deformation and moisture absorption by lithium battery electrodes.

●Modular structure, adaptable to flexible production line layout. The aluminum alloy frame with sealed enclosure allows for rapid on-site assembly. Custom sizes are available for different processes such as PCB soldering and lithium battery stacking; supports the addition of FFU fan filter units, pass-through windows, and anti-static workbenches, seamlessly integrating into existing production lines without large-scale workshop modifications.

●Made with materials specifically designed for the electronics industry, this system is durable and easy to maintain. The enclosure is constructed from corrosion-resistant and easy-to-clean conductive color steel panels, while the floor is made of anti-static PVC roll material/epoxy resin self-leveling compound, which is wear-resistant and scratch-resistant. The air ducts and air outlets are all made of conductive materials and are grounded. All accessories comply with the "Design Code for Cleanrooms in the Electronic Industry" GB50472. Daily maintenance only requires periodic testing of filtration efficiency and electrostatic parameters, resulting in low operating costs.

Core Configuration (Basic/Customizable)

●Anti-static Frame: Aluminum alloy conductive frame, fully grounded design

●Filtration System: Pre-filter + Medium-efficiency filter + HEPA high-efficiency filter, three-stage air purification

●Anti-static Components: Pulse-type ion fan, anti-static floor/workbench, grounding terminal

●Enclosure Structure: Sealed anti-static color steel plate/PVC soft curtain, transparent version optional

●Auxiliary Configuration: LED purification lighting, differential pressure gauge, airflow regulating valve
