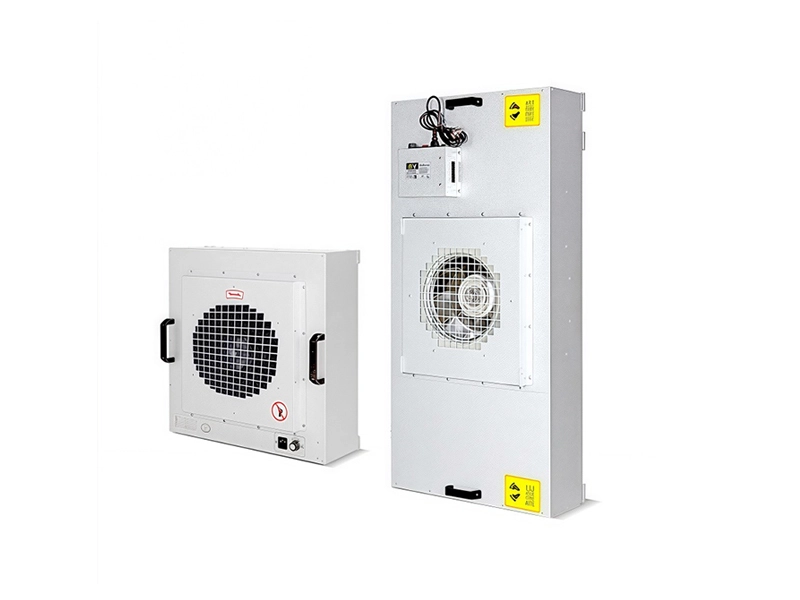

An Filter Unit, effcient purification, flexible combination
Product feature
Stable maintenance of cleanliness
● Vertical laminar flow: Uniform air supply (wind speed 0.3-0.6m/s±15%), quickly remove particles and avoid eddy current pollution.
● HEPA/ULPA filtration: Filtration efficiency 99.97%-99.9995% (H13-U15 level), ensuring a dust-free environment.
High efficiency and energy saving & low operating cost
● DC EC motor: energy consumption is 30%-50% lower than that of traditional AC motor, and 24/7 operation is more economical.
● On-demand air supply: only supply air to the clean area (such as the workbench), reducing the energy consumption of full room ventilation.
● Filter pressure difference monitoring: prompt replacement time to avoid waste caused by premature replacement.
Flexible layout & modular design
Independent control: Each FFU can be started and stopped/speed-regulated independently to precisely adjust the local cleanliness
Easy installation: directly embedded in the ceiling or used with a clean room, without the need for complex duct construction
Strong scalability: the number of FFUs can be increased or decreased as needed to meet production line adjustments or expansion needs
Product Specification
|
Name |
Specification |
Disposition |
Gross Weight(KG) |
|
FFU-2*2 |
575*575*300 |
Material: Outer box,0.7T/Alu-zinc sheet； |
11 |
|
FFU-4*2 |
1175*575*300 |
Material: Outer box,0.7T/Alu-zinc sheet； |
18 |
|
FFU-4*4 |
1175*1175*300 |
Material: Outer box,0.7T/Alu-zinc sheet； |
31 |
Product Specification Chart
