Air Shower Is The First Line Of Defense In Clean Rooms
Product feature
Efficiently remove surface pollutants
● Particle removal: Through high-speed airflow (usually 20-25m/s) spraying, dust, microorganisms and other pollutants attached to the surface of personnel or materials are effectively removed, reducing the risk of contamination brought into the clean room.
● Filtration guarantee: Built-in HEPA/ULPA filter can filter 99.97%-99.999% of particles ≥0.3μm to ensure the cleanliness of the shower airflow.
Mandatory purification barrier for personnel and materials to enter
● Process standardization: The air shower room is a necessary passage in the clean room, and personnel are forced to perform the shower procedure (usually 15-30 seconds) to avoid contamination caused by human negligence.
● Material purification: Provide dedicated air shower channels for goods, equipment and other materials to reduce the probability of foreign matter entering the clean area.
● Interlock system: The air shower room is usually designed with interlocking doors (one in and one out) to prevent direct exchange of clean room and external air, maintain positive pressure in the room, and block external pollution.
● Industry compatibility: It is widely used in medicine, electronics, food, laboratories and other fields, meeting the requirements of GMP, FDA and other regulations.
Product Specification
|
Name |
Specification |
Disposition |
Material |
|

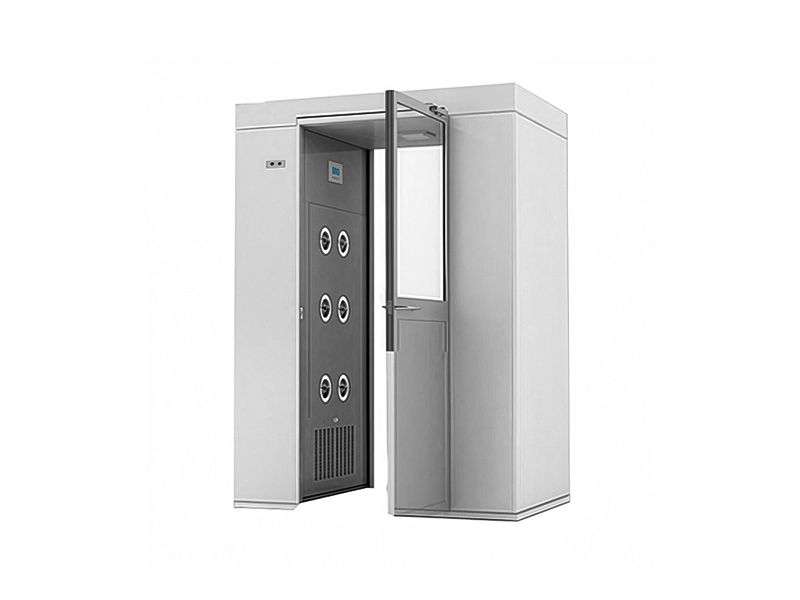

Steel Door Single-Person Double-Blow Air Shower |
(Double-sided air blowing 25 m/s) |
● Material: Exterior cabinet: 0.8T steel plate ● Blower: Built-in 240# blower × 1 ● Filter: HEPA filter × 1 (610×610×69mm, metal frame) ● Door Closer: 65KG hydraulic door closer × 2 ● Nozzles: Stainless steel directional nozzles (180° adjustable, manual airflow control) × 12 ● Interlock Control: Digital air shower controller × 1 ● Electrical Components: Red/green indicator lights × 2 each |
1.Exterior: Painted Cold-Rolled Steel Plate / Interior: 201 Stainless Steel |
|
Steel Door Double-Person Double-Blow Air Shower |
(Double-sided air blowing 25 m/s) |
● Material: Exterior cabinet: 0.8T steel plate ● Blower: Built-in 240# blower × 2 ● Filter: HEPA filter × 1 (610×610×69mm, metal frame) ● Door Closer: 65KG hydraulic door closer × 2 ● Nozzles: Stainless steel directional nozzles (180° adjustable, manual airflow control) × 18 ● Interlock Control: Digital air shower controller × 1 ● Electrical Components: Red/green indicator lights × 2 each ● Door: Large tempered glass insulated steel door (baked paint finish) |
1.Exterior: Painted Cold-Rolled Steel Plate / Interior: 201 Stainless Steel |
|
Standard Rapid Roll-Up Door Cargo Air Shower |
(Double-sided air blowing 25 m/s) |
● Material: Exterior cabinet: 0.8T steel plate ● Blower: Built-in 240# blower × 2 ● Filter: HEPA filter × 1 (610×610×69mm, metal frame) ● Door Closer: 65KG hydraulic door closer × 2 ● Nozzles: Stainless steel directional nozzles (180° adjustable, manual airflow control) × 18 ● Interlock Control: Digital air shower controller × 1 ● Door: Rapid Roll-Up Door |
1.Exterior: Painted Cold-Rolled Steel Plate / Interior: 201 Stainless Steel |
Product Specification Chart
